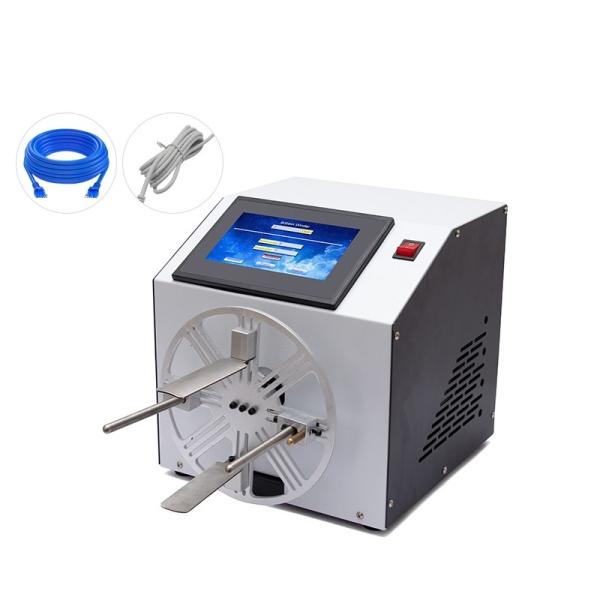

CX-SW01 Electrical Motor Wire Binding Winding Machine
Technical Parameter:
| Winding speed | 1-12 circles/sec (adjustable) |
| Winding inner diameter | 50-200mm |
| Numbers of turn | adjustable |
| Winding force | 6N |
| Voltage&Frequency | 110/220V 50/60Hz |
| Power | 200W |
| Dimension | L250mm*W300mm*H330mm |
| Weight | 18kg |
Description:
The machine can tie and twist the cable automatic. The head length,
tail length, total winding length can be adjusted. Easy to operate
and labors are saved improving output.
Features:
1 Bulk nylon ties can realize automatic feeding, eliminating the
cumbersome process of manual feeding.
2 It can automatically thread the locking tie and automatically cut
the tie, saving time and labor. The maximum production capacity is
about 1800 per hour, which can improve the work efficiency by at
least 4 times.
3 The binding machine is a PLC touch screen control circuit with
simple operation and good working stability.
4 It has a wide range of applications. It can tie all kinds of
linear or circular arc products (diameter greater than 30mm). The
diameter of the binding part can be adapted from 3-50mm.
5 The tightness of the tie is digitally adjustable on the touch
screen, and the tail of the tie is digitally adjustable on the
touch screen
6 No need for air supply is required.
