    1.6kw European C7 2 Pin Crimping Machine For Flat 2 Cores Cable

    Ask Lasest Price
    Brand Name : CX
    Model Number : CX-SE02
    Price : FOB SHENZHEN
    Payment Terms : T/T
    Supply Ability : 150/SET PER MONTH
    Delivery Time : 10-15 working days
    Certification : ISO9001
    • Product Details
    • Company Profile

    1.6kw European C7 2 Pin Crimping Machine For Flat 2 Cores Cable

    Automatic Flat 2 Cores Cable 2 Pin European C7 Power Cord Plug Making Crimping Machine


    Description:
    1, The 2 pin plug crimping machine with function jacket stripping, cores stripping, cutting, plug insert feeding, and crimping finished one time.
    2, HMI debugging, the whole machine is controlled by PLC, frequency converter, and frequency conversion motor, with stable performance, simple operation, safety, and high efficiency.
    3, The same type of plugs can share the machine, and different types of plugs cannot share the machine. Please contact us, we can recommend the right model for you, just send us the plug picture and parameters. We can arrange a free machine test.
    4, The worldwide plug can be customized.
    Applicable cable: H03VVH2-F, H05VVH2-F.
    Technical Parameter:
    Plug Crimping Machine
    ModelCX-SE02Crimping speed2300-2600pcs/h
    Punching force4TVoltageAC220V/50Hz
    Jacket stripping length20mm-60mmCores stripping length3mm-12mm
    Air pressure0.5-0.8MPaWeight433KG
    Power1.6kw
    Dimension1170mm*770mm*1550mm

    1.6kw European C7 2 Pin Crimping Machine For Flat 2 Cores Cable

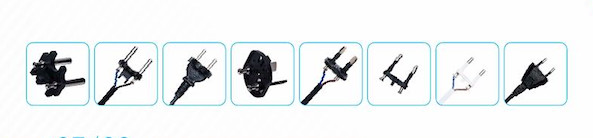

    Finished product

    Process: operator inset the cable+jacket stripping+cores stripping+cutting at same length+plug insert feeding+plug insert crimping finished in one step.

    1.6kw European C7 2 Pin Crimping Machine For Flat 2 Cores Cable
