4T Power Cord Crimping Machine

Ask Lasest Price
Brand Name :	CX
Model Number :	CX-SA02
Certification :	ISO9001
Price :	FOB SHENZHEN
Payment Terms :	T/T
Supply Ability :	150/SET PER MONTH
Delivery Time :	10-15 working days

Add to Cart

Product Details
Company Profile

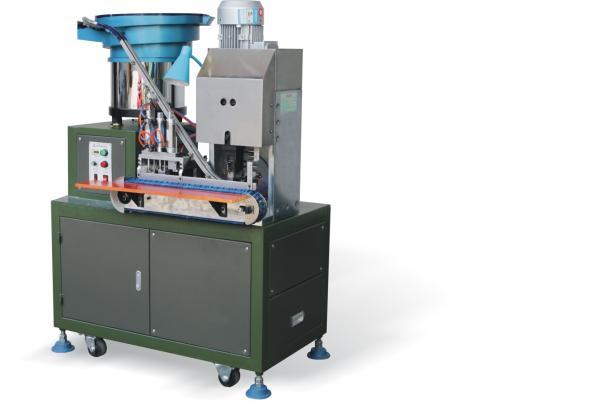

4T Power Cord Crimping Machine

CX-SA02 Electrical Plug 2 Parallel Blade Pin Plug Making Crimping Machine

Description:

1, The 2 pin plug crimping machine with function jacket stripping, cores stripping, cutting, plug insert feeding, and crimping finished one time.

2, HMI debugging, the whole machine is controlled by PLC, frequency converter, and frequency conversion motor, with stable performance, simple operation, safety, and high efficiency.

3, The same type of plugs can share the machine, and different types of plugs cannot share the machine. Please contact us, we can recommend the right model for you, just send us the plug picture and parameters. We can arrange a free machine test.

4, The worldwide plug can be customized.

Applicable cable: H03VVH2-F, H05VVH2-F.

Technical Parameter:

Plug Crimping Machine
Model	CX-SA02	Crimping speed	2,500-2,800pcs/h
Punching force	4T	Voltage	AC220V/50Hz
Jacket stripping length	20mm-60mm	Cores stripping length	3mm-12mm
Air pressure	0.5-0.8MPa	Weight	350KG
Power	1.6kw
Dimension	1130mm830mm1650mm

4T Power Cord Crimping Machine

Finished product

Process: operator inset the cable+jacket stripping+cores stripping+cutting at same length+plug insert feeding+plug insert crimping finished in one step.

4T Power Cord Crimping Machine
