    4T BS Plug Crimping Assembly Machine 900pcs/Hr-1200pcs/Hr

    Ask Lasest Price
    Brand Name : CHENXIN
    Model Number : CX-880
    Certification : ISO9001
    Price : Fob Shenzhen
    Payment Terms : T/T
    Supply Ability : 100 sets per month
    Delivery Time : 15-20 working days
    • Product Details
    • Company Profile

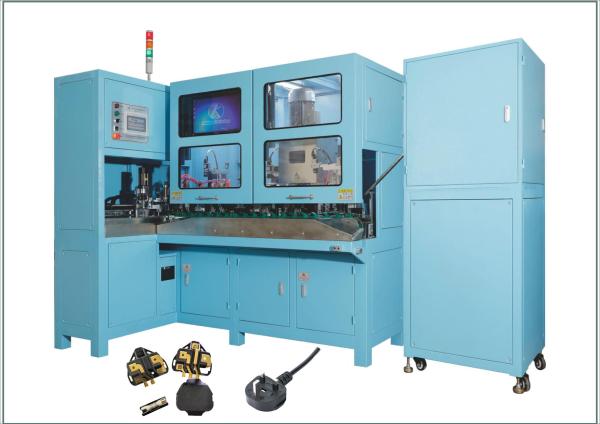

    4T BS Plug Crimping Assembly Machine 900pcs/Hr-1200pcs/Hr

    CX-880 Full Line BS Plug Power Cord Production Cable Wire Cutting Stripping Plug Crimping Assembly Machine


    Features:

    The machine integrates automatic wire feeding, wire cutting, head of cable peeling, dust removal, polarity identification, cores shaping, cores stripping, polarity verification, and head plug crimping, detection for polarity, and leakage of copper. End stripping length up to 20-500mm.


    Applicable Wire:

    3 cores round cable(<1.5mm²), rubber/PVC cable can be work on one machine.


    Technical parameter

    Model of machineCX-880
    Capacity900-1,200pcs/hr
    Punching force4T
    Stripping length4mm-7mm(adjustable on the touch screen)
    Pass yield≥99%
    Air pressure0.5-0.8Mpa
    Voltage&FrequencyAC 220V/380V 50Hz
    Power4.5kw
    DimensionL3,200mm*W2,500mm*H1,900mm(display dimension)
    Weight2,500kg

    4T BS Plug Crimping Assembly Machine 900pcs/Hr-1200pcs/Hr

    Finished product display

    BS plug crimping+Cover assembly

    4T BS Plug Crimping Assembly Machine 900pcs/Hr-1200pcs/Hr
