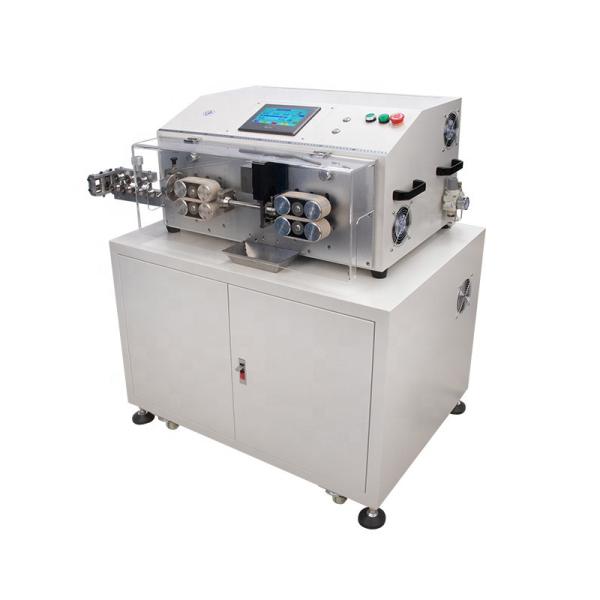

    6-50Sqmm Sheathed Cable Automatic Stripping Machine Wire Cutting

    Ask Lasest Price
    Brand Name : CX
    Model Number : CX-3110
    Price : EXW, FOB, CIF, C&F
    Payment Terms : T/T
    Supply Ability : 50 sets per month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    6-50Sqmm Sheathed Cable Automatic Stripping Machine Wire Cutting

    6-50 Sqmm Sheathed Cable Automatic Stripping Machine Wire Cutting And Stripping Machine

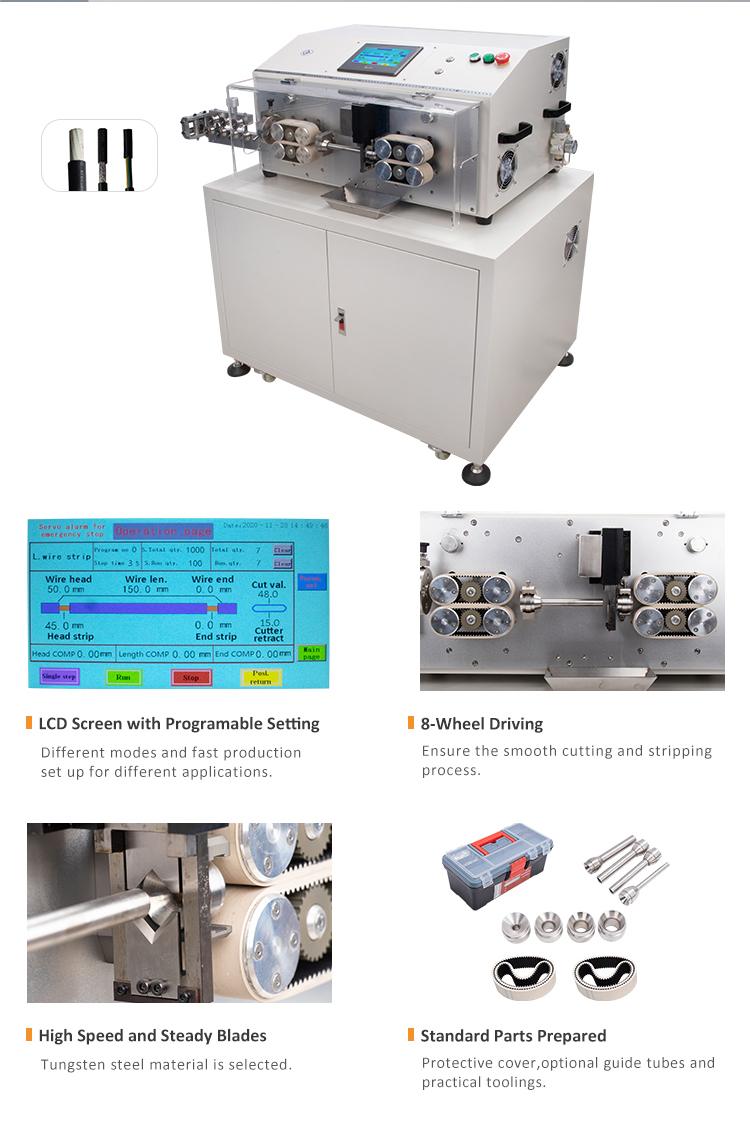

    Features

    1. LCD Screen with Programable Setting: set up for different applications.
    2. 8-Wheel Driving: Different modes and fast production Ensure the smooth cuttingand stripping process.
    3. High Speed and Steady Blades : Tungsten steel material is selected.
    4. Standard Parts Prepared: Protective cover,optional guide tubes and practical toolings.

    Technical Parameter

    ModelCX-3110
    Stripping range6-50 mm2
    Stripping Length1-200mm(wire head), 1-100mm(wire end)
    Feeding SpeedMax. 6.0 m/s
    Max. stripping diameter16 mm
    Capacity1000-5000 pcs/h
    Power220V, 50HZ, 0.3 kw
    Air Supply0.2-0.6 Mpa
    Weight110kg
    Dimension800 x 650 x 450mm
    Stored program0-99 kinds of processing data.
    Stripping layer

    3 layers
