    6-150Sqmm Automatic Cable Wire Cutting And Stripping Machine Heavy Duty

    Ask Lasest Price
    Brand Name : CX
    Model Number : CX-05E
    Price : EXW, FOB, CIF, C&F
    Payment Terms : T/T
    Supply Ability : 50 sets per month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    6-150Sqmm Automatic Cable Wire Cutting And Stripping Machine Heavy Duty

    6-150 Sqmm Heavy Duty Automatic Cable Wire Cutting And Stripping Machine

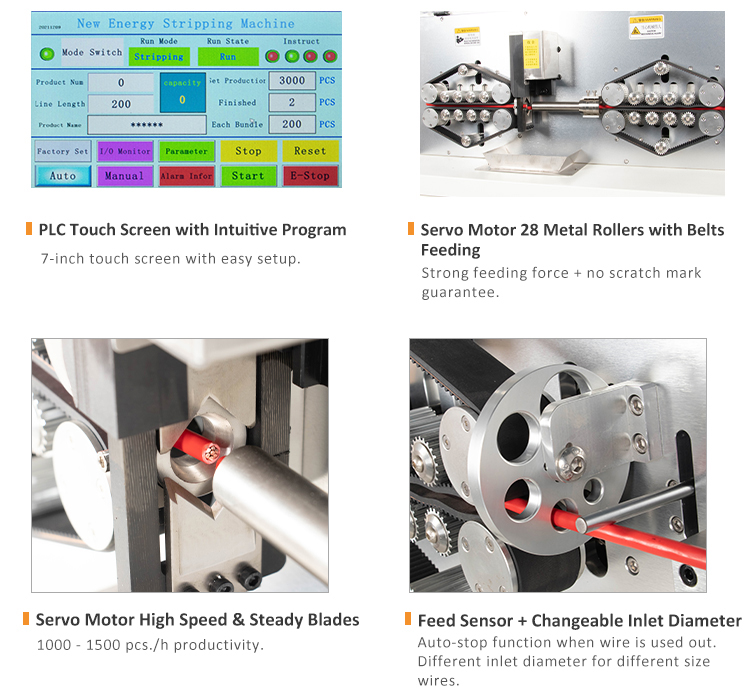

    Features:

    PLC Touch Screen with Intuitive Program: 7-inch touch screen with easy setup. Feeding

    Servo Motor 28 Metal Rollers with Belts: Strong feeding force + no scratch mark guarantee.
    Servo Motor High Speed & Steady Blades: 1000-1500 pcs./h productivity.

    Feed Sensor+Changeable Inlet Diameter: Auto-stop function when wire is used out. Different inlet diameter for different size wires.


    Technical Parameter

    ModelCX-05E
    CapabilityUp to 3-layer shield cable
    Wire materialWide range of industrial wires
    Conductor cross-section6 - 150 mm²
    Cutting length1 - 100,000 mm (can be customized)
    Cutting length tolerance< 0.002 * L
    Stripping length (side I)0 - 500 mm
    Stripping length (side II)0 - 250 mm
    Maximum guide tube diameter32 mm
    Driving mode28-roller with belts driving
    Display mode7-inch touch screen
    Memory capacity100 materials
    Blade materialHigh speed steel
    Productivity1000 - 1500 pcs./h
    Power supply110, 220 V (50 - 60 Hz)
    Power1200 W
    Weight270 kg
    Dimension

    1180 * 650 * 1200 mm
