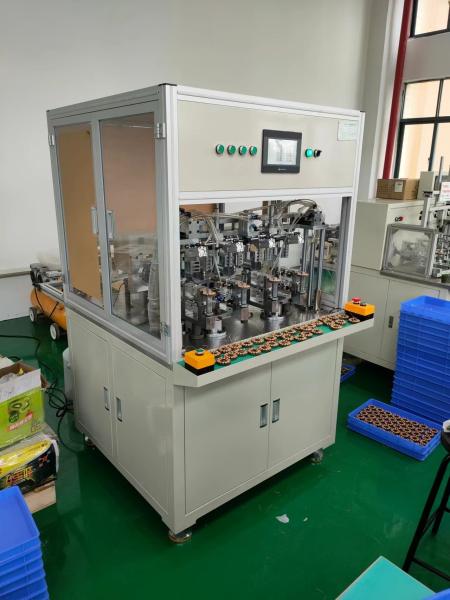

CX-JY04 8 Head 4 Station Outer Rotor Motor Winding Machine

Product Categories

Chenxin Automation Equipment(Guangzhou) Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: CXJY04 8 Head 4 Station Outer Rotor Motor Winding Machine
Brand: CHENXIN
Price: 1 USD

Ask Lasest Price
Brand Name :	CHENXIN
Model Number :	CX-JY04
Certification :	ISO-9001
Payment Terms :	L/C, T/T
Delivery Time :	35 working days after receive deposit

Add to Cart

Size(LWH)		140012001750			Weight(Kg)		600KG
Power(KW)		3KW			Frame (seat) material		Steel
Productions Efficien(P/H)					Applicable		Outer rotor motor
This Machine equipped with matching molds, tools, fixtures, random accessories, vulnerable spare parts, software
Serial No	Name		Unit	Qty		Remark
1	Mold (customized by your company)		set	1
2	Wire rack wire diameter 0.1-0.6		set	1
3	Spool 250*300		piece	4
4	porcelain eyes		piece	4
5	Sensors		piece	1
6	special tools		set	1

Main configuration: Explanation: In this table, the control system, servo motor, stepping motor, pneumatic components, touch screen, solenoid valve, electrical components, voltage stabilization system, positioning system, transmission system, guide rail, bearing, mold, tool, frequency converter, display should be explained , ups, heat dissipation protection system, safety protection and other specific configurations
No	Name	Specification	Part Manufacture	Remark
1	Controller			1set
2	Servo Motor	1.5KW	捷美康	1set
3	Servo Motor	0.75	捷美康	2set
4	Touch Screen	5.7 inch		1 set

The main technical parameters: Explanation: Power supply; requirements for material or workpiece size; requirements for material or workpiece weight; requirements for material or workpiece speed; requirements for tools; processing method; main motor speed; air source requirements; positioning and clamping mode and other specific configuration
No	Tehnical component	Technical parameters
1	Stator outer diameter	Φ20-Φ85
2	Accumulated	5-50
3	Wire Diamter	Φ0.1-0.6(Need to replace the wire rack)
4	Winding speed	0-3000rpm
5	air pressure	5-7KG/CM2
6	voltage	220V-3KW

CX-JY04 8 Head 4 Station Outer Rotor Motor Winding Machine
